7628 3732 2116 Woven Fiberglass Fabric Wide Roll Glass Fiber Cloth for Industrial Composite Applications

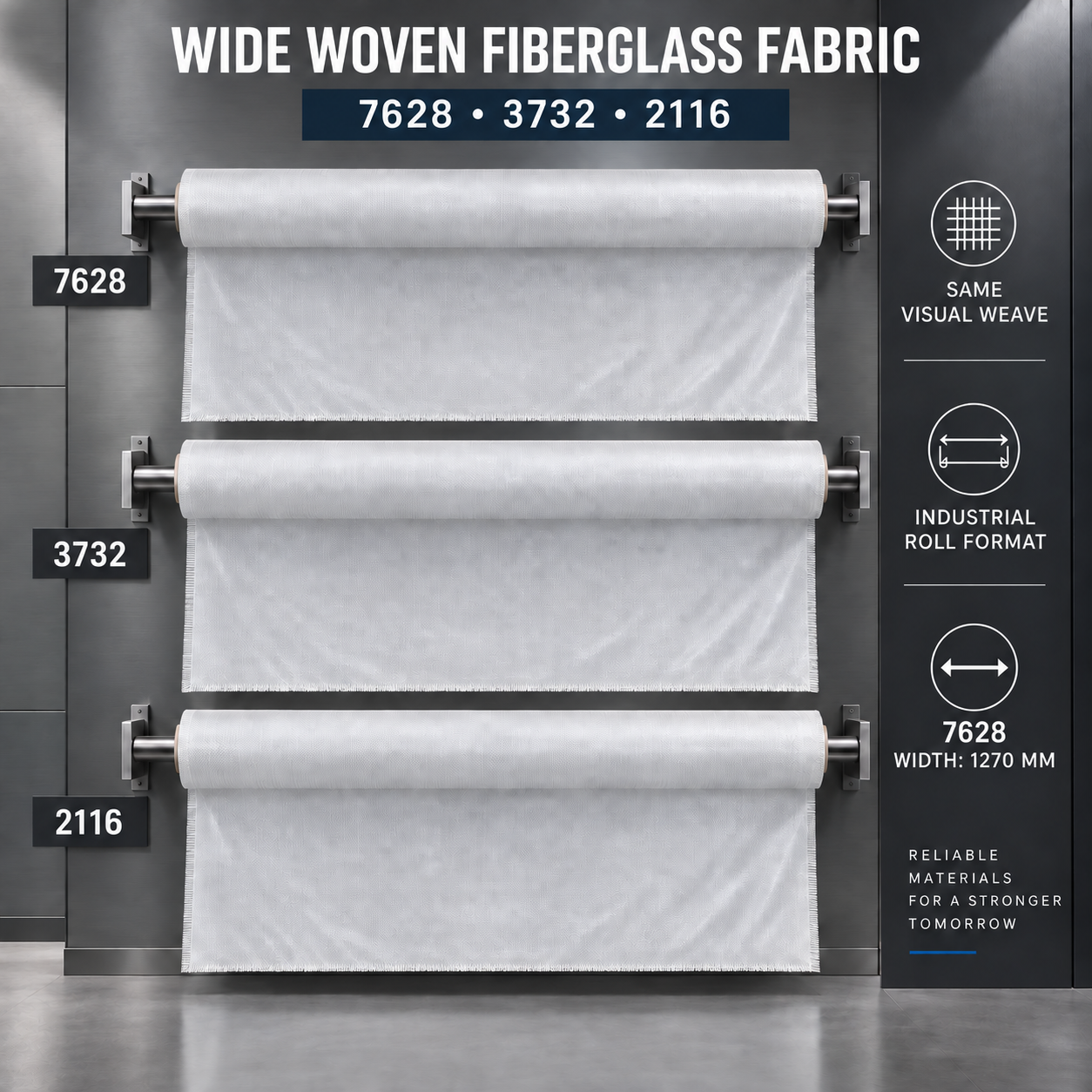

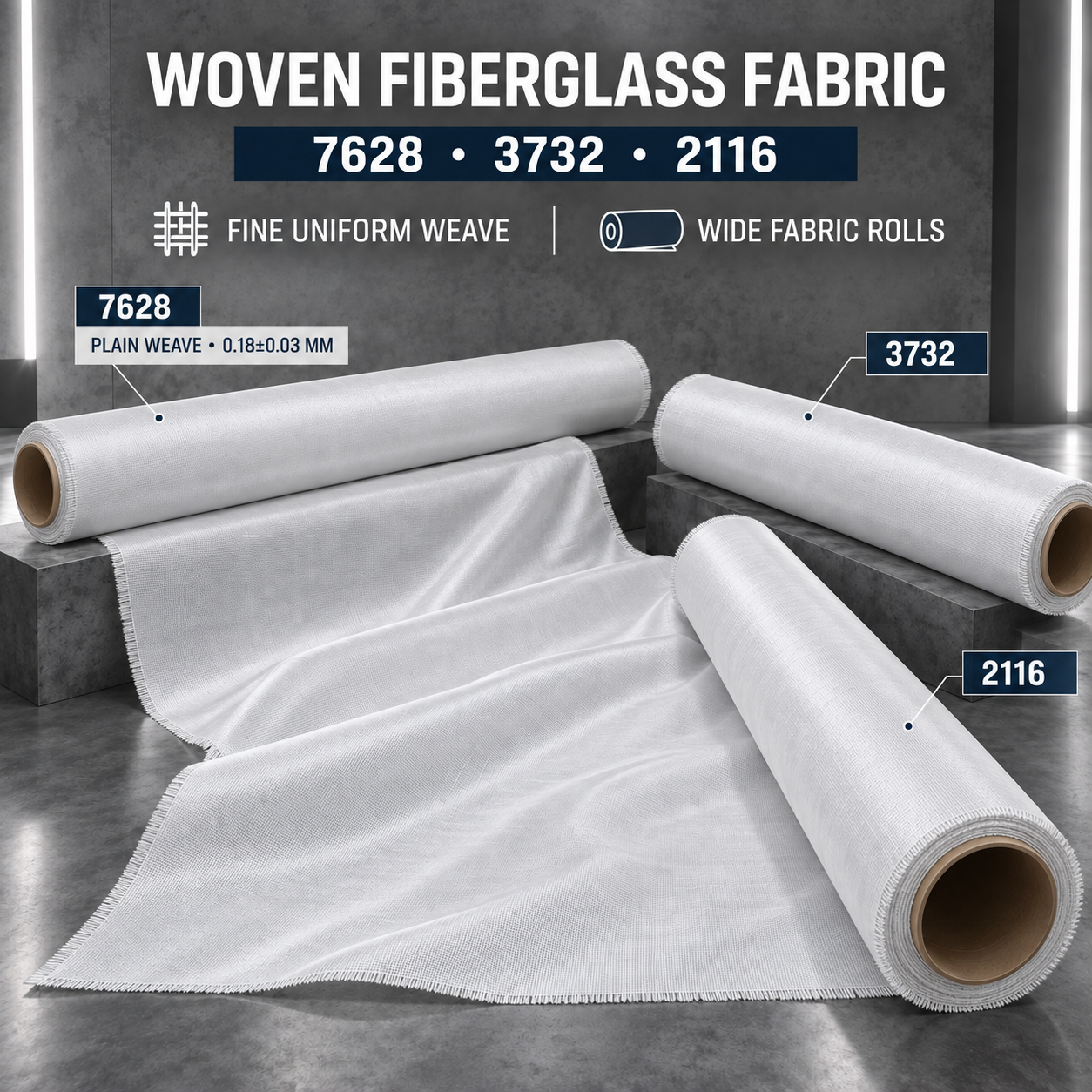

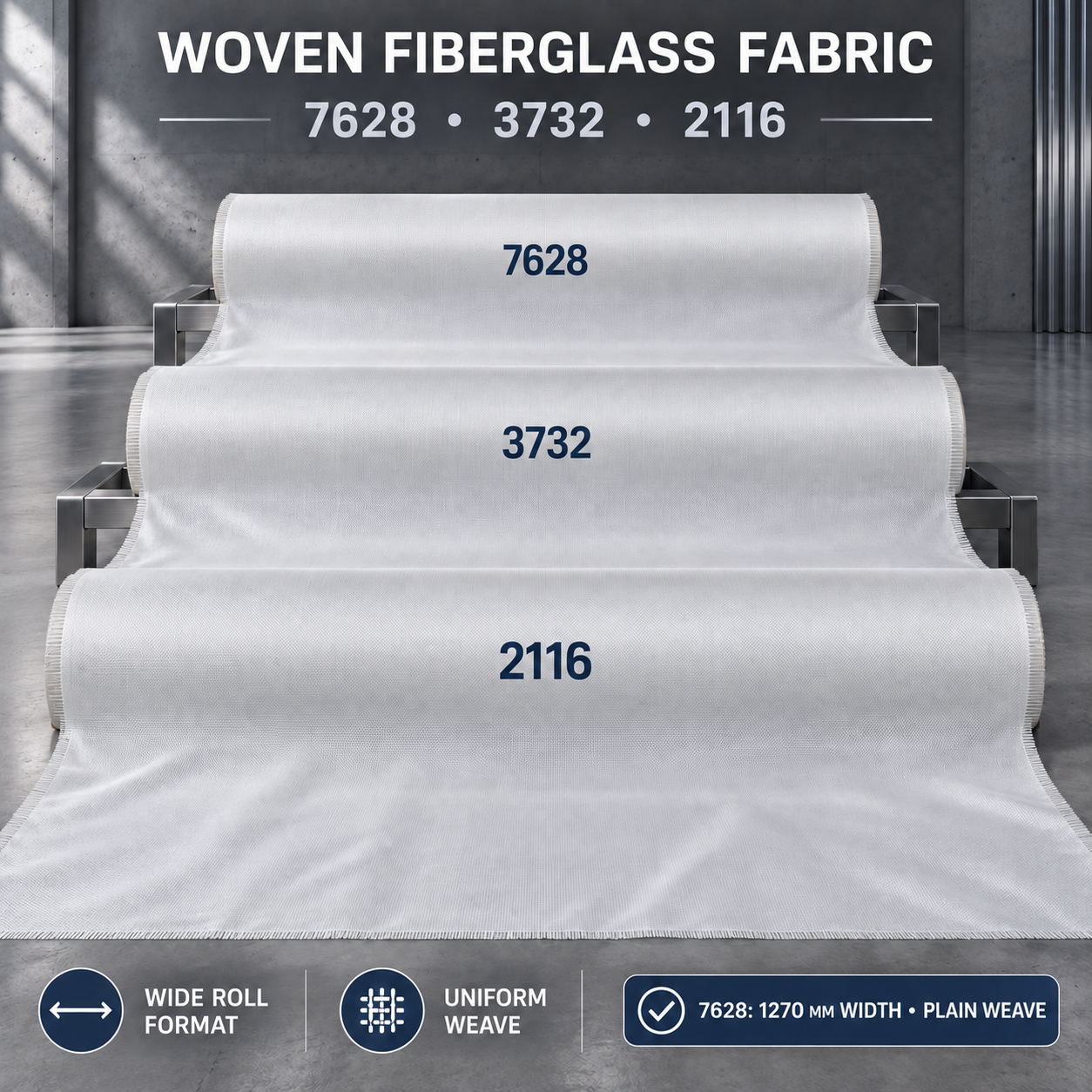

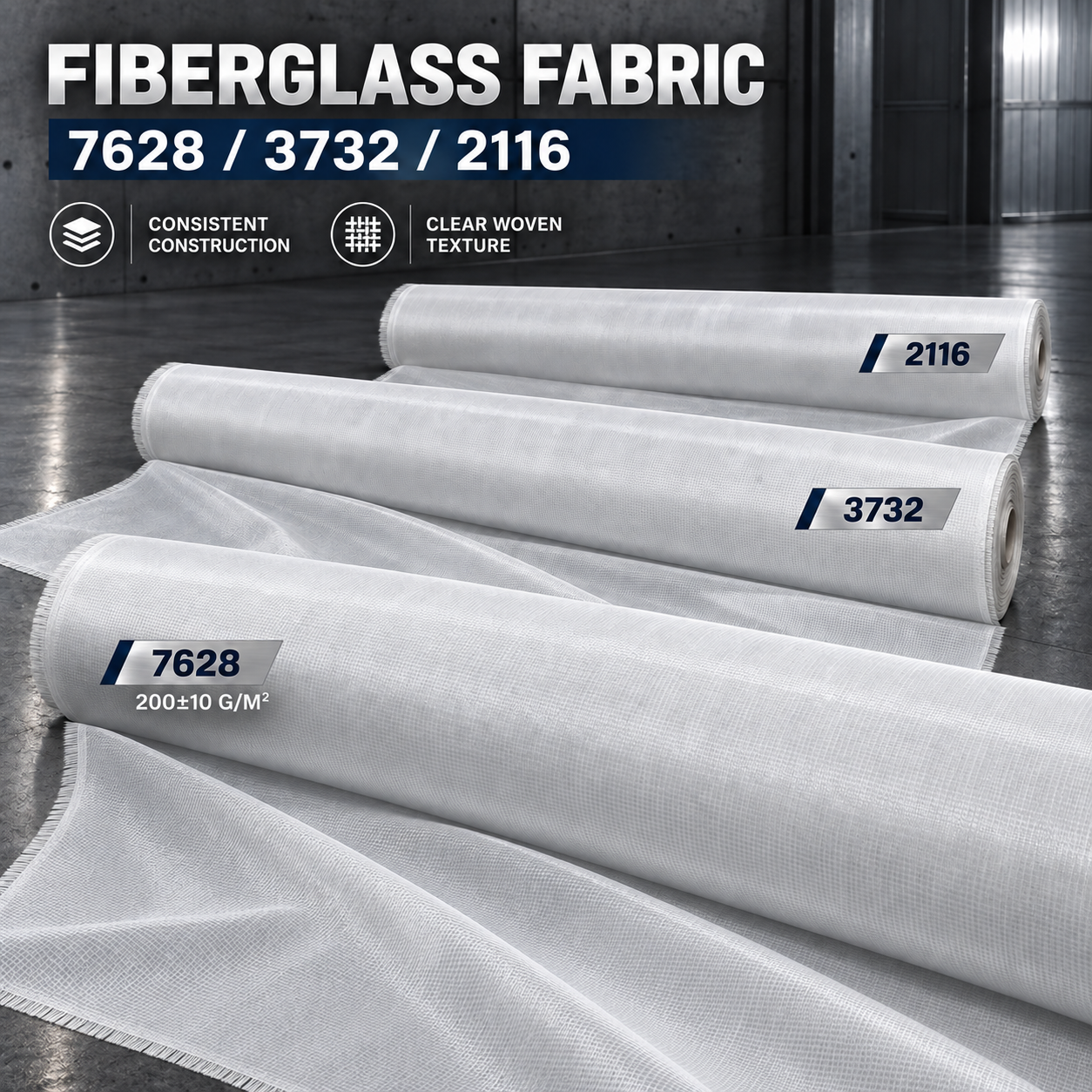

Available in 7628, 3732 and 2116 models, this woven fiberglass fabric features a fine, uniform weave, clean surface and wide-roll format. The three models have a similar visual appearance and can be selected according to the required technical specifications. Supplied in roll form for composite reinforcement, electrical insulation and other industrial processing applications. Please contact us for model specifications, roll width and customized requirements.
Fiberglass Fabric Specifications
| Property | 7628 | 3732 | 2116 |
|---|---|---|---|
| Fabric Type | Woven E-glass Fabric | Woven Glass Fabric | Woven E-glass Fabric |
| Weave | Plain Weave | 4-Harness Satin | Plain Weave |
| Yarn | Warp 68 tex / Weft 68 tex | ECG 37 1/0 × ECG 37 1/0 | E225 × E225 |
| Thread Count | 17 ± 1 × 12 ± 1 ends/cm Approx. 43 × 31 ends/in |
48 × 32 ends/in Approx. 18.9 × 12.6 ends/cm |
60 ± 2 × 57 ± 2 ends/in Approx. 23.6 × 22.4 ends/cm |
| Areal Weight | 200 ± 10 g/m² | Approx. 427 g/m² | 103 ± 2 g/m² |
| Thickness | 0.18 ± 0.03 mm | Approx. 0.34 mm | Approx. 0.09 mm |
| Width | 1270 mm / ≥ 50 in | Confirm by Order | Typical 1275 mm |
| Breaking Strength | Warp ≥ 1039 N/25 mm Weft ≥ 725 N/25 mm |
Typical Warp: 550 lbf/in Typical Fill: 400 lbf/in |
Confirm by Technical Data Sheet |
| Supply Form | Wide Roll | Wide Roll | Wide Roll |
Note: The values shown above are typical reference data. Specifications may vary depending on the manufacturer, surface treatment, production batch and order requirements. Final specifications are subject to the confirmed quotation and product technical data sheet.
